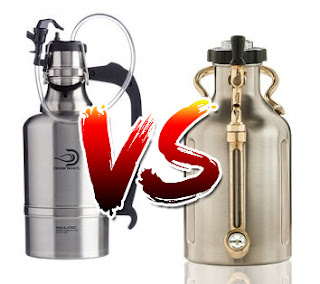

Drink Tanks v. GrowlerWerks, a patent lawsuit examination

In a recent Kickstarter update GrowlerWerks mentioned that they had been served with a patent infringement lawsuit by Drink Tanks, another pressurized growler company. I thought it would be interesting to examine the technical aspects of this patent dispute between two local Oregon growler companies. In November 2015, Drink Tanks filed a lawsuit with the United States Federal Court in Deleware, claiming that the GrowlerWerks uKeg infringes their patent. Both companies completed successful Kickstarter projects for CO2-pressurized growlers for storing, preserving, and dispensing beer.

Disclaimer: In examining this case I will be providing some of my own opinions and thoughts regarding the lawsuit. I am by no means a legal expert, and any opinions should be taken as such.

Drink Tanks
In March of 2013, a Kickstarter campaign for Drink Tanks was launched creating one of the first pressurized growlers on the market. A month later, the campaign closed with $236,772 in funding and 1,959 backers. Two years later, they launched a second campaign for the Kegulator Cap and The Juggernaut 128 oz. growler. This time they raised $304,142 with 2,076 backers. Almost a year later, Drink Tanks purchased a $1.64 million dollar, 17,250 square-foot facility in downtown Bend, as they had outgrown their previous building and needed more room. However, not all was going seamlessly at Drink Tanks. A recent Kickstarter update indicated they have been “unable to get consistent results” from their recent batch of Kegulator caps. Some of these delays have been caused by of manufacturing issues and tooling changes.

GrowlerWerks
On October 15, 2014 GrowlerWerks launched their Kickstarter for the uKeg; on December 7th they successfully funded their campaign with over $1.5 million dollars. Since, then the GrowlerWerks team has had some scaling issues as well, varying from production issues to product refinement, while still trying to fulfill rewards for over 10,000 backers. GrowlerWerks’ recent Kickstarter updates indicate they continue to ship out uKegs to their Kickstarter backers. However, they have had to do so at a reduced rate, selling to retail outlets in order to fund their pending lawsuit.

Both companies are currently having difficulties fulfilling the rewards to their backers. As is the case with many popular Kickstarters, there are unforeseen issues and delays in taking a product from an idea to mass production (e.g. OuyaCoolest CoolerPebble Watch, the list goes on.)

I attempted to contact Drink Tanks CEO, Nick Hill, in order to get his side of the story for this article. Unfortunately, I was told Drink Tanks could not comment on active litigation. I also reached out to GrowlerWerks CEO, Shawn Huff, and he agreed to discuss the issues with me. He was also able to direct me to some of the publically available court documents and patent office filings.

In speaking with Huff, he is unclear about what specific part of the patent the uKeg allegedly infringes. The court documents do not specify which claims of the patent are being infringed, only that there is a claim of infringement.  One of the main things I got from our conversation is how unexpected this lawsuit was to him. After receiving the lawsuit, Huff said he called Drink Tanks CEO Nick Hill and tried to discuss the issue since the two were on friendly terms. Hill had visited with the GrowlerWerks team at both the Craft Brewers Conference and Great American Beer Festival, where they were both exhibitors and there was no mention of a lawsuit. Shawn said Hill never returned the call, but he did get a call from Hill’s lawyer, indicating he would speak with him. Huff then set up a meeting through the lawyers in Bend, but explained Drink Tanks cancelled before the meeting took place.

Huff also added he wasn’t sure what Drink Tanks was trying to achieve with the lawsuit, saying that “Draft beer growlers are a niche market, so more offerings and awareness benefits everyone in the business. Growlers aren’t a new thing, in fact they’re a very old thing that people used to share their beer, but our companies have innovated and re-introduced them for craft beer lovers. Lawsuits aren’t really in the spirit of craft beer collaboration either.”

In my experience, most people in the craft beer industry are very friendly and want to help each other out. While Drink Tanks is entitled to file this lawsuit, it seems to go against the spirit of craft beer by not trying to work it out before going straight to litigation.

CASE TIMELINE
The following is a brief timeline, setting up an order of events for the patent litigation that will be explained further.
Feb. 2013
Drink Tanks files first provisional patent.
Mar. 2013
Drink Tanks Launches their first Kickstarter with the DrinkTank and KegCap.
Jun. 2013
Drink Tanks files full patent application.
Dec. 2013
GrowlerWerks founders come up with idea to make a new pressurized growler after drinking flat beer from a glass growler.
Jan 2014
GrowlerWerks researches pressurized growlers and finds many products already being sold. So they purchase one of each and decide none really meet their requirements, and begin designing their own.
May 2014
GrowlerWerks applies for first provisional uKeg patent application.
Oct. 14, 2014
GrowlerWerks launches Kickstarter aware of the Drink Tanks original patent, the next day, Drink Tanks files for an expanded continuation of their original ‘959 patent.
Nov. 2014
USPTO grants Drink Tanks original patent US 8,887,959.
Mar. 2015
Drink Tanks launches second Kickstarter for 128oz Juggernaut Growler and Kegulator.
May 2015
GrowlerWerks files full patent application for uKeg.
Oct. 2015
Drink Tanks patent continuation granted, becoming new patent US 9,156,670
Nov. 16, 2015
Drink Tanks files a complaint against GrowlerWerks with Federal Court in Delaware, stating the uKeg is infringing on their newly broadened ‘670 patent.
May 2016
GrowlerWerks has patent issued US 9,352,949*
*GrowlerWerks, not knowing about the continuation until they were sued, were obliged to reference the ‘670 patent in their USPTO application. Patent applicants are required to provide all relevant references they know about up until the point that the USPTO issues the patent. The patent examiner did not reject the application based on the reference and the patent was granted.

The USPTO has a process called re-examination to reevaluate patents that may have been granted in error. GrowlerWerks claims that the patent examiner made a mistake and granted IP for technology that was already in the marketplace. GrowlerWerks submitted a petition for IPR (Inter-Partes Review), which is to correct an oversight by the patent office.

The following patent applications were not mentioned in the “references cited” section of either the original Drink Tanks’ patent or its continuation:
The exclusion of these patents in this section indicates the examiner was not provided with them as prior art and did not find them in his review during examination of the continuation. Additionally, not only are none of these relevant applications cited, a large portions of the citations are in reference to cryogenics or other non-beverage container patents.

THE PATENT PROCESS
When submitting a patent application the inventor makes a claim or claims, describing what they have invented and what is new and novel about it. For a patent to be patentable it must meet the criteria in United Stated Code (U.S.C.) Section 35, portions of which are paraphrased below. These are not the only requirements for a patent to be granted, but they are the major sections that are frequently cited in cases like this.

35 U.S.C. §101 – Patentable subject matter - the new invention must be in a category for which a patent may be granted
35 U.S.C. §102 – Novel - cannot be previously invented, publicly disclosed or for sale in the market
35 U.S.C. §103 – Non-obvious - cannot be obvious to combine well-known parts.
35 U.S.C. §112 – Enabling description - Must contain a written description of the invention and the manner and process of making and using it.

The Drink Tanks litigation claims GrowlerWerks has infringed their intellectual property. To counter their claim of infringement, GrowlerWerks has submitted a patent re-examination request, which asks the USPTO to take another look at the claims in the Drink Tanks continuation. If some of the Drink Tanks claims are found to be invalid by the re-examination, then the claim on infringement could be substantially narrowed.

The task for GrowlerWerks is to prove aspects of the Drink Tanks patent are not valid. GrowlerWerks has submitted a lengthy examination of every line of Drink Tanks’ patent claims. But the most obvious analysis can be done on the two independent claims

The following prior art summary, attached with one of GrowlerWerks’ court filings, briefly describes GrowlerWerks argument that Drink Tanks should have never been issued the continuation. The text in red is specific pieces of the Drink Tanks independent patent claims, GrowlerWerks asserts is prior art. Those sections are then superimposed over four previously existing patents. I have also underlined the sections unique to each claim.

Prior Art Summary (Click to expand)
Claim 1
A beverage storage system comprising: a container body comprising a vacuum sealed metal vessel having a rim which has a non-planar surfacea lid having a threaded portion and a gas inlet valve; and an annular elastomeric seal interposed between a bottom surface of the lid and the rim and configured to seal against the non-planar surface of the rim.

Claim 18
A beverage storage system comprising: a container body comprising a vacuum sealed metal vessel having a rim which has a non-planar surfacea lid having a gas inlet valve; and an annular elastomeric seal disposed in an annular channel in the bottom surface of the lid and configured to seal against the non-planar surface of the rim; wherein the container body includes a generally cylindrical neck region and the channel includes a sidewall configured to abut an outer surface of the neck region.

This diagram describes the Drink Tanks system as a combination of a rim sealing lid, integrated with a GrowlerSaver, on top of a HydroFlask. There are also a variety of pressurized growlers on the market such as the Brauler (another Portland Kickstarter company), ManCanTrailKegiKegger, and CO2 Mini Beer Tap Head System. Combining multiple obvious technologies does not warrant a new patentable technology. Combining multiple patents does not warrant a new invention, sections of these patents even mention combining them.

EXAMINATION OF THE CLAIMS
The first claim (1), if you remove the part about the gas inlet valve, comes pretty close to describing the HydroFlask. Drink Tanks uses the same seal type used on the HydroFlask, which was available long before Drink Tanks.
HydroFlask lid (Left) and Drink Tank lid (Right)
So what you’re left with, if you take out the HydroFlask portion, is “a lid having a threaded portion”
The threaded portion seems to be worded slightly ambiguously. The implication being that the cap could be threaded or the gas inlet valve could be threaded; neither being a new invention.

The second claim (18) is a reassertion of the first, describing the HydroFlask with a gas valve, and then adding the seal is “disposed in an annular channel”, the body includes “a generally cylindrical neck region”, and the channel includes “a sidewall configured to abut an outer surface of the neck region.”

Seals “disposed in an annular channel” are available as prior art on both the 2008 Olsen patent and the HydroFlask. A body including a “generally cylindrical neck region” might seem a little broad to some. I am not aware of many sealing beverage storage systems not having a generally cylindrical neck region (e.g. travel mugs, glass growlers, soda bottles, etc.)

The next difference describes the “sidewall configured to abut an outer surface of the neck region.” This seal design is not new and also one Drink Tanks does not use. The seal used by Drink Tanks is the same as HydroFlask, a square o-ring sandwiched between the bottom of the lid and the top of the growler rim. The difference being HydroFlasks have a screw top and Drink Tanks use wire bales to generate seal pressure.
The uKeg uses a round o-ring, a style of o-ring that is commonly used on beverage containers, dating back to the first vacuum insulated Thermoses®. It is a very generic and widely used method of sealing liquid vessels (e.g. travel mugs.) I took a picture of a Contigo® travel mug, Fifty/Fifty® growler (also from Bend), and the uKeg’s lid o-ring. They are all vacuum insulated and use a  round o-ring to seal on the inside of the vessel.
Round o-rings found on Contigo Cup, Fifty/Fifty Growler and uKeg
At the end of the day I believe this comes down to the USPTO granted intellectual property rights to Drink Tanks which it did not own. GrowlerWerks has asked the patent office to do a re-examination and included all of the readily available prior art demonstrating all aspects of the Drink Tanks patent were pre-existing on the marketplace prior to the application. The re-examination will then allow the USPTO the necessary information to correct the oversight.

A brief history of growler technology
Hydro Flask
Patent application 2011
Brauler FreshCap Kit
No Patent, Available 2012
TapIt Cap
No Patent, Kickstarter 2012
Growler Saver
Patent application 2013, Kickstarter 2013
Drink Tanks
Patented 2013, Kickstarter 2014
Patent Application 2015
GrowlerWerks
Patented 2014, Kickstarter 2014

For me, this entire litigation can be summed up in one simple sentence:
A patent was mistakenly granted when Drink Tanks claimed they invented pre-existing technology.

The USPTO must decide by December 7th, 2016 if they will institute the inter-partes review based on GrowlerWerks’ petition.  In the case that they do not institute the IPR, the federal court case will determine if the patent and infringement claims are valid.

Disclosure: I did participate in the GrowlerWerks Kickstarter campaign and pledged for a uKeg64.
